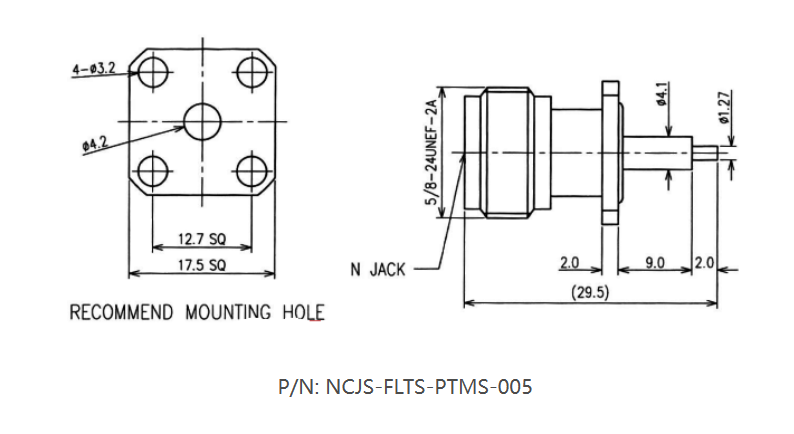

N Female Waterproof Terminal,4 hole Flange, 9mm Insulator and 2mm Pin, 11Ghz

N Female Waterproof Terminal,4 hole Flange, 9mm Insulator and 2mm Pin, 11Ghz

5 Days Ship Out. Negotiated Prcie. ZOMWAVE N Type Female Waterproof Terminal Connector, 4 hole Flange, Extended 9mm Insulator and 2mm Pin connector has an interface type of stub terminal and a 50 Ohm impedance.Type N female connector uses shield/contact solder as an attachment method. Our female Type N pcb connector provides a minimum frequency of DC and a maximum frequency of 11GHz. ZOMWAVE Type N female pcb connector has a PEI dielectric type and a VSWR of 1.25. The ZOMWAVE N Type Female Waterproof Terminal Connector, 4 hole Flange, Extended 9mm Insulator and 2mm Pin connector has stainless steel body. Our Type N connector uses beryllium copper contact. ThisType N connector is RoHS and REACH compliant. Our Type N connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. ZOMWAVE supplies Type N connector .

12in

P/N:NCJS-FLTS-PTMS-97 Quantity Unit Price 01~09 US$4.33 10~49 US$5.16 50~99 US$4.01 100~499 US$3.74 500+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

n connectors, type n female connector, rf connectors

n connectors, type n female connector, custom rf connectors

n connectors, type n female connector, coaxial cable supplier

n connectors, type n female connector, coax cable assemblies

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

type n connectors, type n connectors, rf connectors, coaxial cable supplier

Configuration
Connector Series	Type N
Connector Gender	Female
Connector Angle	Straight
Connector Mount Method	None
Attachment Method	4-Hole Flange
Interface Type	Stub Terminal
Material
Centre Contact	Phosphorus-Copper Gold Plated
Body	Brass, Nickel Plated
Insulators	PTFE
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	11GHZ
VSWR	≤1.25:1 (DC 0~11GHz)
Insertion Loss	0.05 xSqt.(f_Ghz)
Voltage Rating	150 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
