SMP(GPO) Male RA Thru Hole(Limited Detent), .200 inch x .047 inch Hole, 18ghz

SMP(GPO) Male RA Thru Hole(Limited Detent), .200 inch x .047 inch Hole, 18ghz

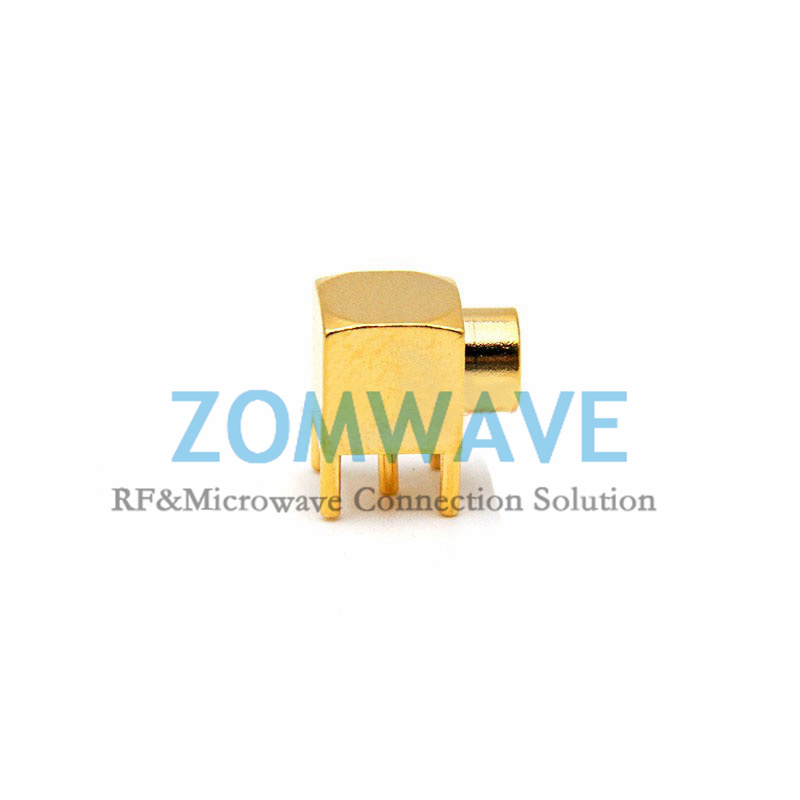

5 Days Ship Out. Negotiated Prcie. ZOMWAVE SMP(GPO) Male Right Angle Thru Hole PCB Connector (Limited Detent), .200 inch x .047 inch Hole connector has an interface type of thru hole and a 50 Ohm impedance. SMP male connector uses shield/contact solder as an attachment method. Our male SMP pcb connector provides a minimum frequency of DC and a maximum frequency of 18 GHz. ZOMWAVE SMP Pmale pcb connector has a PTFE dielectric type and a VSWR of 1.25. ZOMWAVE SMP(GPO) Male Right Angle Thru Hole PCB Connector (Limited Detent), .200 inch x .047 inch Hole connector has a brass body with gold plating. Our SMP connector uses beryllium copper contact. This SMP male pcb RF connector is RoHS and REACH compliant. Our SMP male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment.

12in

P/N:MPPR-NMSS-PTHT-99 Quantity Unit Price 01~09 US$13.89 10~49 US$11.67 50~99 US$10.80 100~199 US$10.06 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

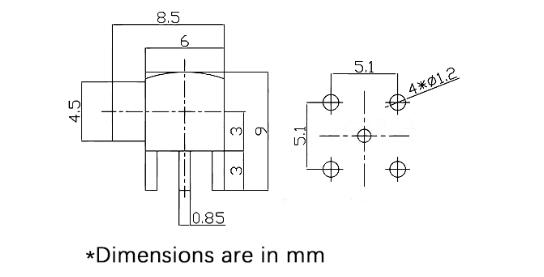

Specifications

gpo connector, connector gpo , connector smp

gpo connector, connector gpo , smp adapter

gpo connector, connector gpo , smp cables

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

smp connector, smp connectors, custom rf connectors

Configuration
Connector Series	SMP
Connector Gender	Male
Connector Angle	Right Angle
Connector Mount Method	None
Attachment Method	Solder
Interface Type	Thru Hole
Material
Centre Contact	Brass, gold plated
Body	Brass, gold plated
Insulators	PTFE
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	18GHZ
VSWR	≤1.25:1 (DC 0~18GHz)
Insertion Loss	0.05 xSqt.(f_Ghz)
Voltage Rating	150 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5-7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
