SMA Female Straight Surface Mount PCB Connector, 18GHz

SMA Female Straight Surface Mount PCB Connector, 18GHz

5 Days Ship Out. Negotiated Prcie. ZOMWAVE SMA Female Straight Surface Mount PCB Connector has an interface type of Surface Mount Contact and a 50 Ohm impedance. SMA female connector uses shield/contact solder as an attachment method. Our female SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 18GHz. ZOMWAVE SMA female pcb connector has a PTFE dielectric type and a VSWR of 1.35. The ZOMWAVE SMA Female Straight Surface Mount PCB Connector has a brass body with gold plating. Our SMA connector uses beryllium copper contact. This SMA female pcb RF connector is RoHS and REACH compliant. Our SMA female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. compatible only with the 2.4mm interface. Zomwave supplies SMA Female Straight Thru Hole PCB Connector.

12in

P/N:MAJS-NMSS-PSMT-003 Quantity Unit Price 01~09 US$4.00 10~49 US$3.85 50~99 US$3.70 100~499 US$3.45 500+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

sma female connector, sma connector, pcb connector

sma female connector, sma connector, rf connector, pcb connector

sma female connector, sma connector, rf connector, custom rf connector

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

sma connector, sma female connector, sma rf connector

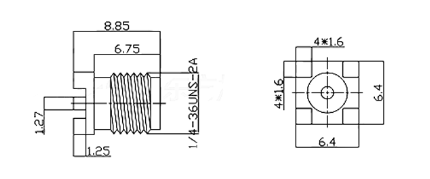

*Dimensions are in mm
