MMCX Female to MMCX Female Adapter, 6GHz

MMCX Female to MMCX Female Adapter, 6GHz

The MMCX Female to MMCX Female Adapter is perfect for interconnection of coaxial components or sub-systems connection. This 50 ohm adapter has a straight body. Our MMCX Female to MMCX Female Adapter is brass gold plated that is cost-effetive for use. ZOMWAVE MMCX Adapter has excellent VSWR performance with frequency up to 6 GHz

12in

P/N:MMJ-MMJ-SNM-01 Quantity Unit Price 01~09 US$5.00 10~49 US$4.81 50~99 US$4.63 100~199 US$4.31 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

mmcx adapter, mmcx female adapter, rf adapter

mmcx adapter, mmcx female adapter, custom rf adapter

mmcx adapter, mmcx female adapter, custom caoxial adapter

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

mmcx addapter, mmcxfemale adapter, mmcx male adapter

Configuration
Connector Series 1	MMCX
Connector Gender 1	Female
Connector Body Material 1	Brass Gold Plated
Connector Series 2	MMCX
Connector Gender 2	Female
Connector Body Material 2	Brass, Gold Plated
Adatper Angle	Straight
Adatper Mount Method	None
Electrical Specifications
Impedance	50 ohm
Frequency Range(From DC)	6GHz

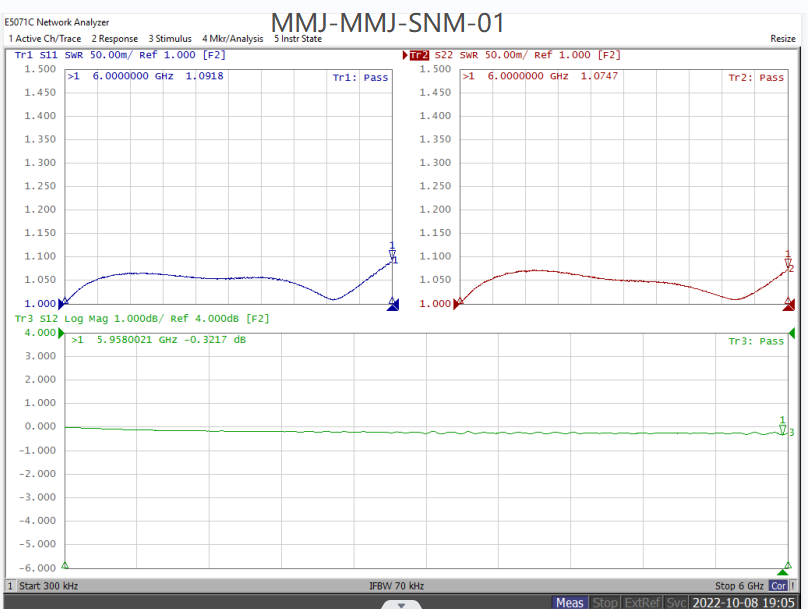

VSWR	≤1.25(DC 0~6GHz)
Insertion Loss	≤0.05xSqt(f_GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	1000V
Insulation Resistance	≥5000Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-45°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
