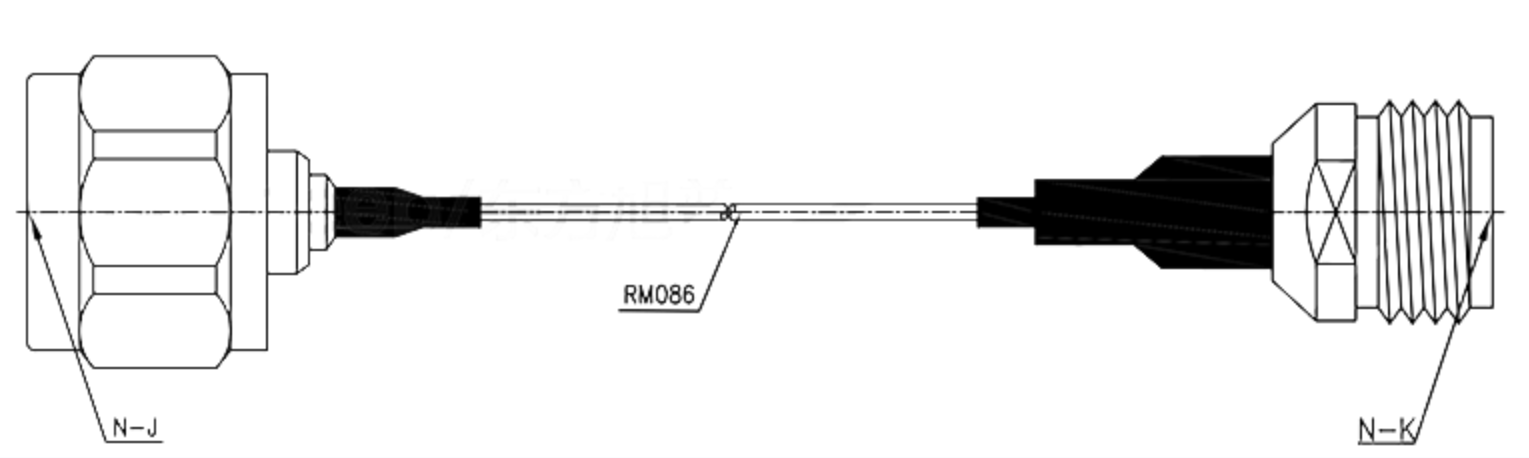

N Type Male to N Type Female, Flexible .086''/SS405 Cable, 18GHz

N Type Male to N Type Female, Flexible .086''/SS405 Cable, 18GHz

RF coaxial cable n type male to n type female, Flexible 086''/ SS405 cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The n type male to n type female cable assembly is composed of Flexible 086''/ SS405. The SS405 coaxial cable adopts a solid center conductor, PTFE (polytetrafluoroethylene) insulation, silver-plated copper braided outer shield, and silver-plated Copper spiral inner shield. This multi-layer shielding structure can not only provide excellent insertion loss and shielding performance, but also improve the flexibility of the cable. ZOMWAVE is the place to buy high-quality n type male to n type female cable assemblies, which can be shipped quickly worldwide. Variations of type n cable assemblies can also be manufactured and will be shipped within 5 days.

Standard Lengths :

12in 24in 36in 48in

P/N:NCJSNCPS-T086-12IN-01 Quantity Unit Price 01~09 US$25.37 10~49 US$24.39 50~99 US$23.49 100~200 US$21.87 200+ Call Us

P/N:NCJSNCPS-T086-24IN-01 Quantity Unit Price 01~09 US$27.40 10~49 US$26.34 50~99 US$25.37 100~200 US$23.62 200+ Call Us

P/N:NCJSNCPS-T086-36IN-01 Quantity Unit Price 01~09 US$29.43 10~49 US$28.30 50~99 US$27.25 100~200 US$25.37 200+ Call Us

P/N:NCJSNCPS-T086-48IN-01 Quantity Unit Price 01~09 US$31.46 10~49 US$30.25 50~99 US$29.13 100~200 US$27.12 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

n type male to n type male, custom rf cables, flexible coaxial cable

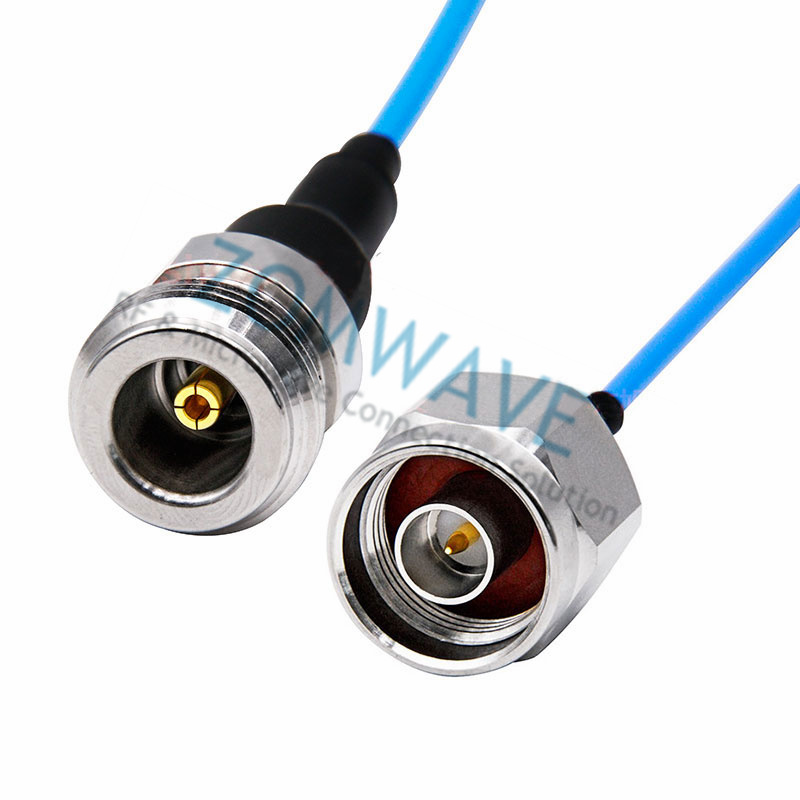

n type male to n type female, custom rf cables, flexible coaxial cable

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

type n male to female, coax cable assembly, coaxial cable supplier

Configuration
Connector Series 1	N Type
Connector Gender 1	Male
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Brass, Nickel Plated
Connector Series 2	N Type
Connector Gender 2	Female
Connector Angle 2	Straight
Connector Mount Method 2	None
Body Materials and Plating 2	Brass, Nickel Plated
Cable Type	Flexible .086''/ SS405
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	18GHz
VSWR	≤1.25:1 (DC 0~18GHz)
Insertion Loss	Depends on cable length
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +85°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center Conductor	Silver plated copper
Dielectric	Low Density PTFE
Jacket	FEP
Jacket Diameter(mm)	2.60±0.05
Min. Bending Radius(mm)	10
Shielding Effect(dB)	>90
Weight(kg/km)	18(Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.5	0.44
1	0.66
2	0.97
3	1.23
5	1.64
6	1.82
8	2.14
10	2.43
15	3.06
18	3.39
