SMB Jack to MCX Male Right Angle, RG316 Cable, 4GHz

SMB Jack to MCX Male Right Angle, RG316 Cable, 4GHz

No MOQ, 5 days Shipping out, 100% fully tested to ensure high quality. SMB Jack to MCX Male Right Angle, RG316 Cable. ZOMWAVE RG316 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG316 coax is constructed with a 0.102 jacket made of FEP, assemblies are part of over 40,000 RF, microwave and millimeter wave components. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The SMB Jack to MCX Male Right Angle, RG316 Cable assembly is composed of Flexible RG316 Cable. The Flexible RG316 Cable. are perfect for interconnection of coaxial components or sub-systems connection. The cable construction includes a silver-plated copper-clad steel center conductor, low loss PTFE, and tin overcoated copper shield braiding, which minimizes signal leakage. Connectors have brass, nickel plated coupling nut over a gold plated connector body that make the connection more reliable. The Flexible RG316 Cables are available in variety of length to meet your requirements. Variations of smb to mcx cable assemblies can also be manufactured and will be shipped within 5 days.

Standard Lengths :

12in 24in 36in 48in

P/N:MBJSMXPR-R316-12IN-01 Quantity Unit Price 01~09 US$5.33 10~49 US$5.13 50~99 US$4.94 100~199 US$4.60 200+ Call Us

P/N:MBJSMXPR-R316-24IN-01 Quantity Unit Price 01~09 US$6.00 10~49 US$5.77 50~99 US$5.56 100~199 US$5.17 200+ Call Us

P/N:MBJSMXPR-R316-36IN-01 Quantity Unit Price 01~09 US$6.67 10~49 US$6.41 50~99 US$6.17 100~199 US$5.75 200+ Call Us

P/N:MBJSMXPR-R316-48IN-01 Quantity Unit Price 01~09 US$7.33 10~49 US$7.05 50~99 US$6.79 100~199 US$6.32 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

smb jack, smb jack cable, mcx male , mcx cable assembly

smb jack, smb jack cable, mcx male , mcx cable assembly, smb jack to mcx male

smb jack, smb jack cable, mcx male , mcx cable assembly, smb jack to mcx male, rf cable assembly

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration

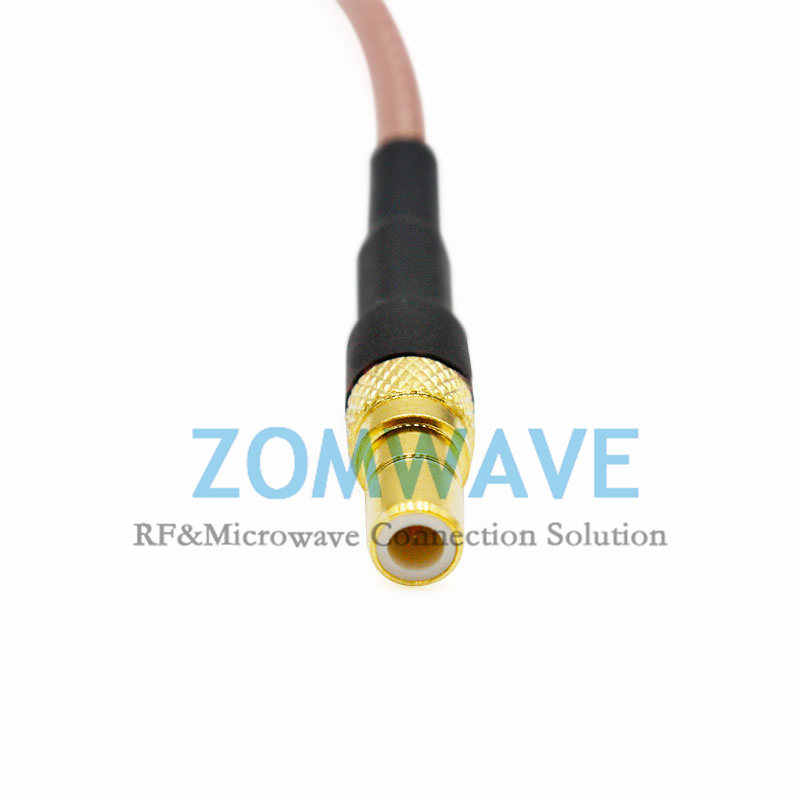

Connector Series 1	SMB
Connector Gender 1	Jack
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Brass, Gold Plated

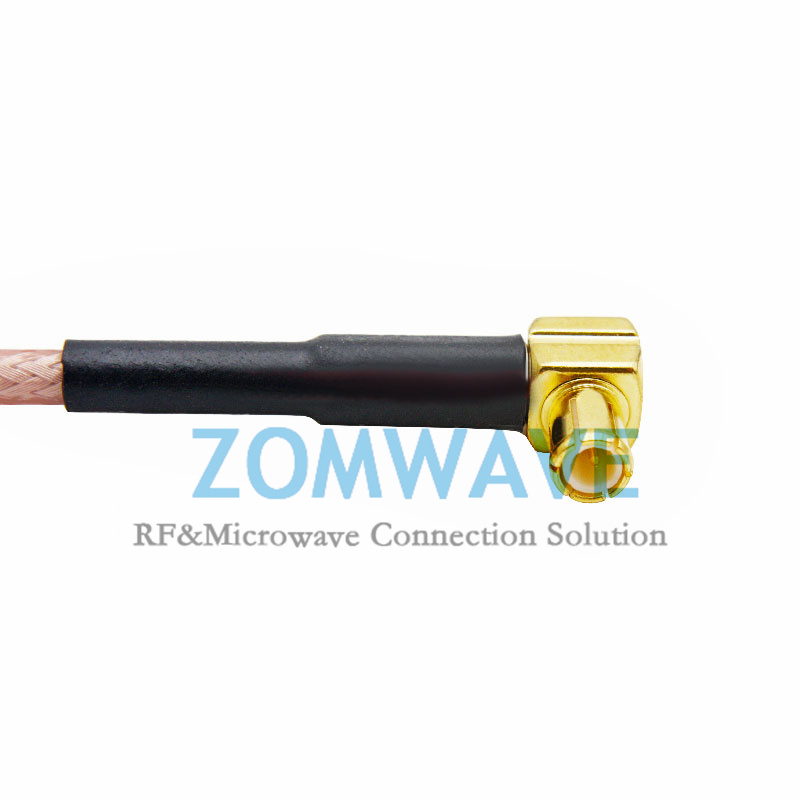

Connector Series 2	MCX
Connector Gender 2	Male
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Body Materials and Plating 2	Brass, Gold Plated
Cable Type	RG316
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	4GHz
VSWR	≤1.35:1 (DC 0~4GHz)
Insertion Loss	Depends on cable length
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +85°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center Conductor	Silver plated copper
Dielectric	PTFE
Jacket	FEP
Jacket Diameter(mm)	2.50±0.05
Min. Bending Radius(mm)	15
Shielding Effect(dB)	>80
Weight(kg/km)	16 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.1	0.29
0.4	0.58
0.9	0.88
1	0.93
1.8	1.27
2.4	1.46
3	1.65
5	2.14
6	2.34
