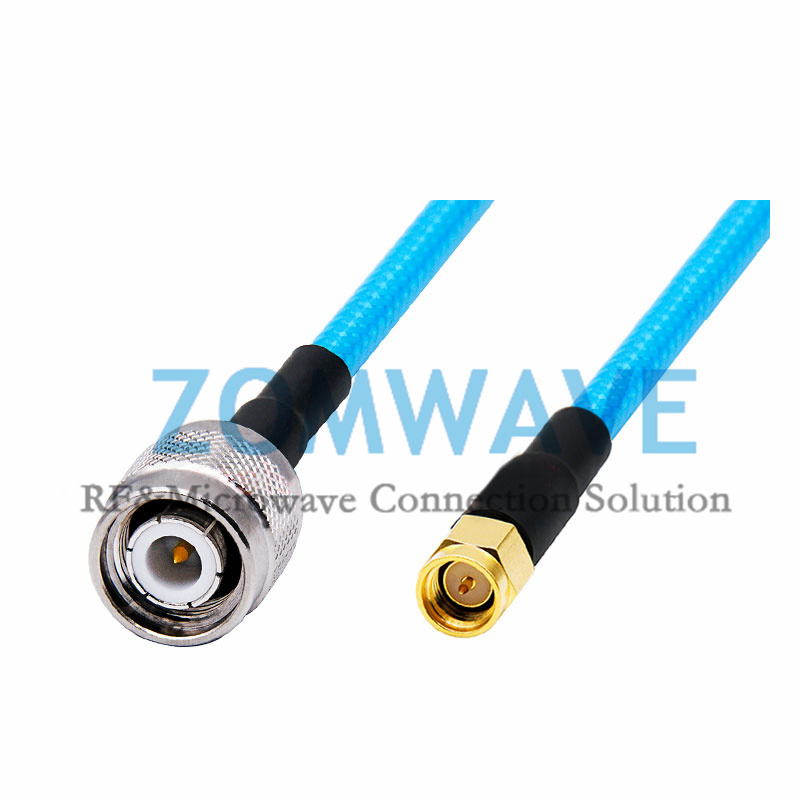

SMA Male to TNC Male, RG142 Ultra Flexible PUR Cable, 6GHz

SMA Male to TNC Male, RG142 Ultra Flexible PUR Cable, 6GHz

RF coaxial cable SMA Male to TNC Male, RG142 Ultra Flexible PUR Cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are suitable for automobiles, broadband, industry 4.0, instrumentation, medical treatment, military, quantum computing, smart agriculture, 5G wireless, etc. The SMA Male to TNC Male cable assembly is composed of RG142 Ultra Flexible PUR Cable. The RG142DB PUR Jacket Cable coaxial cable adopts a solid center conductor, PTFE (polytetrafluoroethylene) insulation, silver-plated copper braided outer shield, and silver-plated Copper spiral inner shield. This multi-layer shielding structure can not only provide excellent insertion loss and shielding performance, but also improve the flexibility of the cable. ZOMWAVE is the place to buy high-quality SMA to TNC cable assemblies, which can be shipped quickly worldwide. Variations of bnc cable assemblies can also be manufactured and will be shipped within 5 days.

Standard Lengths :

12in 24in 36in 48in

P/N:MAPSTNPS-X142-12IN-01 Quantity Unit Price 01~09 US$17.70 10~49 US$17.02 50~99 US$16.39 100~199 US$15.26 200+ Call Us

P/N:MAPSTNPS-X142-24IN-01 Quantity Unit Price 01~09 US$20.65 10~49 US$19.85 50~99 US$19.12 100~199 US$17.80 200+ Call Us

P/N:MAPSTNPS-X142-36IN-01 Quantity Unit Price 01~09 US$23.60 10~49 US$22.69 50~99 US$21.85 100~199 US$20.34 200+ Call Us

P/N:MAPSTNPS-X142-48IN-01 Quantity Unit Price 01~09 US$26.55 10~49 US$25.53 50~99 US$24.58 100~199 US$22.89 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

sma male cable, sma cable assembly, tnc male cable

sma male cable, sma cable assembly, tnc male cablem, tnc cable assembly

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration
Connector Series 1	SMA
Connector Gender 1	Male
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Brass, Gold Plated
Connector Series 2	TNC
Connector Gender 2	Male
Connector Angle 2	Straight
Connector Mount Method 2	None
Body Materials and Plating 2	Brass, Nickel Plated
Cable Type	RG142 Ultra Flexible PUR Cable
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	4GHz
VSWR	≤1.25:1 (DC 0~4GHz)
Insertion Loss	Depends on cable length
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +85°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center Conductor	Silver plated copper
Dielectric	PTFE
Jacket	PUR(Blue)
Jacket Diameter(mm)	5.10±0.15
Min. Bending Radius(mm)	25
Shielding Effect(dB)	>90
Weight(kg/km)	66 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.5	0.32
1	0.46
1.8	0.63
2.4	0.72
3	0.82
5	1.07
6	1.18
