3.5mm Male to SMA Female, Flexible ZCXN 3507 Cable, 18GHz

3.5mm Male to SMA Female, Flexible ZCXN 3507 Cable, 18GHz

RF coaxial cables 3.5mm Male to SMA Female ZCXN 3507 cable assemblies are part of the largest coaxial cable selection for RF, microwave and millimeter wave interconnect solutions. ZOMWAVE coaxial cable assembly products are used for high-quality applications, such as laboratory radio frequency testing and measurement. They are sturdy and durable. They are designed for aerospace, radar, microwave, test system, etc. 3.5mm Male to SMA Female cable assembly is constructed with ZCXN 3507, which is a flexible type of coaxial cable with high phase and amplitude stability. The flexible 3.5mm cable assembly is manufactured with 3.5mm Stainless Steel connectors, with 40 ohm impedance and triple shielding coaxial cable. ZOMWAVE is the place to buy high-quality 3.5mm Male to SMA Female cable assemblies, which can be shipped quickly worldwide. Variations of 3.5mm cable assemblies can also be manufactured and will be shipped within 5 days.

Standard Lengths :

24in 36in 48in 60in

P/N:MAJSP3PS-B360-24IN Quantity Unit Price 01~09 US$55.64 10~49 US$53.50 50~99 US$51.52 100~199 US$47.97 200+ Call Us

P/N:MAJSP3PS-B360-36IN Quantity Unit Price 01~09 US$75.96 10~49 US$73.04 50~99 US$70.33 100~199 US$65.48 200+ Call Us

P/N:MAJSP3PS-B360-48IN Quantity Unit Price 01~09 US$96.28 10~49 US$92.58 50~99 US$89.15 100~199 US$83.00 200+ Call Us

P/N:MAJSP3PS-B360-60IN Quantity Unit Price 01~09 US$116.60 10~49 US$112.12 50~99 US$107.96 100~199 US$100.52 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

3.5mm male to sma female, coaxial cable supplier, sma cable

3.5mm male to sma female, coax cable manufacturer, sma cable

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

sma female cable, coaxial cable supplier, custom rf cables

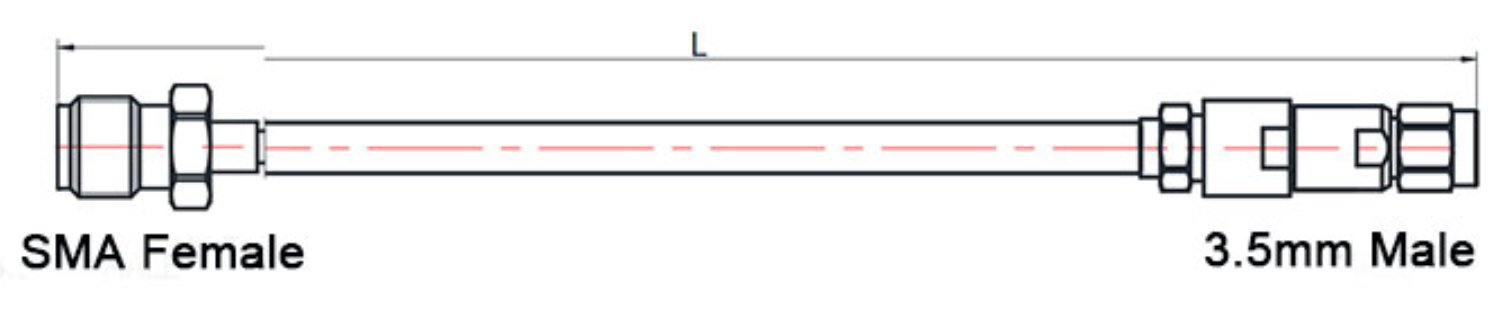

Configuration
Connector Series 1	SMA
Connector Gender 1	Female
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Stainless Steel, Passivated
Connector Series 2	3.5mm
Connector Gender 2	Male
Connector Angle 2	Straight
Connector Mount Method 2	None
Body Materials and Plating 2	Stainless Steel, Passivated
Cable Type	ZCXN3507
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	30GHz
VSWR	≤1.25:1 (DC 0~18GHz)
Insertion Loss	Depends on cable length
Mechanical Phase	<±5°@18GHz
Amplitude Stability	<±0.07dB@18GHz
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +85°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center Conductor	Silver plated copper
Dielectric	Low Density PTFE
Jacket	FEP
Jacket Diameter(mm)	3.60±0.15
Min. Bending Radius(mm)	18
Shielding Effect(dB)	>90
Weight(kg/km)	33 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.5	0.26
1	0.38
2	0.53
3	0.66
5	0.85
6	0.94
10	1.22
18	1.67
20	1.76
26.5	2.05
30	2.19
