SMA Male to N Type Male Ultra Flexible RF Test Cable,Low Loss Phase-Stable,18GHZ

SMA Male to N Type Male Ultra Flexible RF Test Cable,Low Loss Phase-Stable,18GHZ

ZOMWAVE Ultra Flexible Low Loss Phase-Stable Test Cables are designed for both flexible and hi-flex application. Their superior flexibility is beneficial to repeated testing applications, and with tight routing and installation requirements. ZOMWAVE SMA Male to N Type Male Ultra Flexible Low Loss Phase-Stable Test Cables are use a ultra-flex wire strands, and extremely bendable polyurethane jacket that enable very small bend radia and deliver a 10 Million flex cycle life, with no wire compression, corkscrewing, or distortion. ZOMWAVE SMA Male to N Type Male male Ultra Flexible Low Loss Phase-Stable Test Cables are using a Stainless Steel with passivated connectors that are durable for the applicaton.

Standard Lengths :

24in 36in 48in 60in

P/N:UFN18-MAPNCP-24.00IN Quantity Unit Price 01~09 US$61.05 10~49 US$58.70 50~99 US$56.53 100~199 US$52.63 200+ Call Us

P/N:UFN18-MAPNCP-36.00IN Quantity Unit Price 01~09 US$73.24 10~49 US$70.43 50~99 US$67.82 100~199 US$63.14 200+ Call Us

P/N:UFN18-MAPNCP-48.00IN Quantity Unit Price 01~09 US$85.43 10~49 US$82.15 50~99 US$79.11 100~199 US$73.65 200+ Call Us

P/N:UFN18-MAPNCP-60.00IN Quantity Unit Price 01~09 US$97.63 10~49 US$93.87 50~99 US$90.40 100~199 US$84.16 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

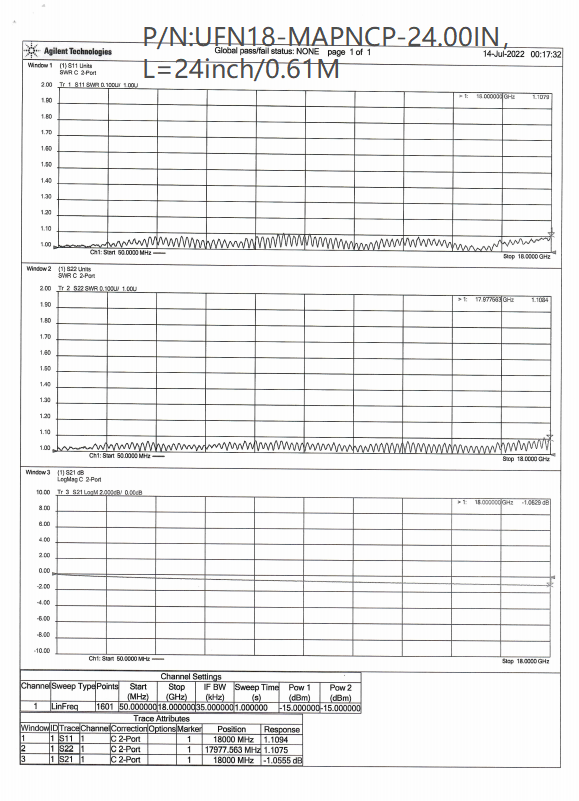

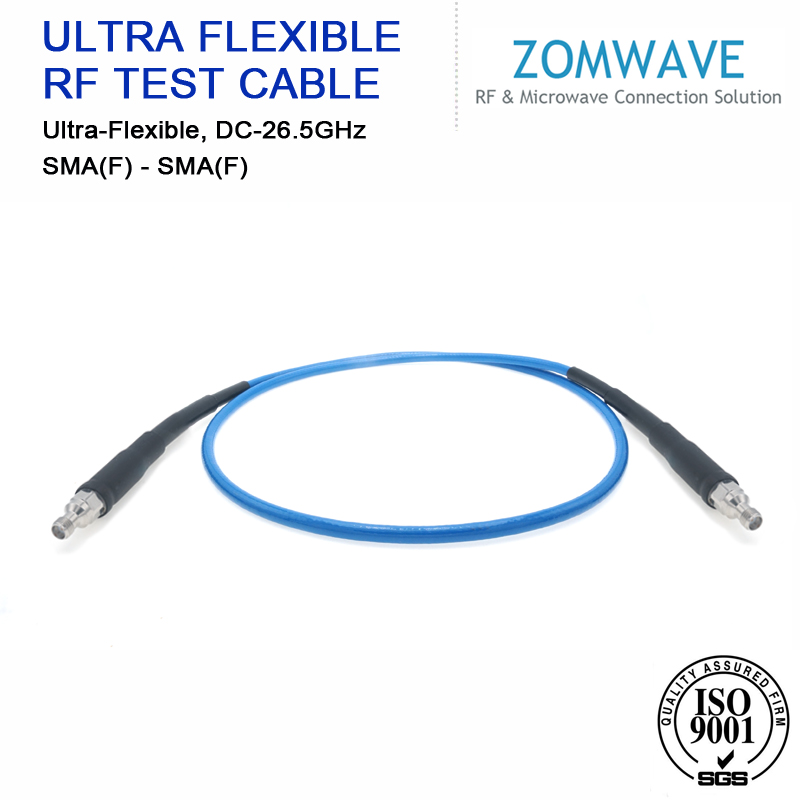

Pictures

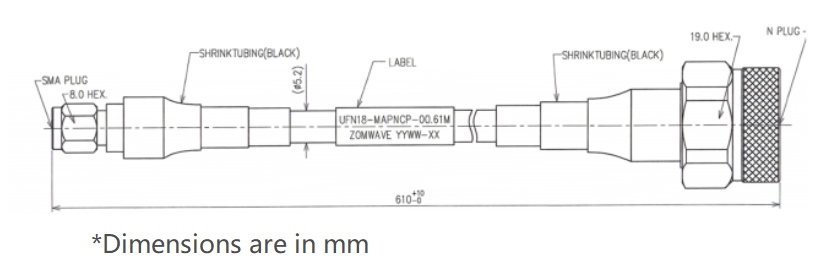

Specifications

rf test cable, sma cbale, type n cable

sma male to n type male tset cable, flexible rf test cable

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

rf test cable, rf test cables, sma cable, sma cable assembly

Configuration
Connector Series 1	SMA
Connector Gender 1	Male
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Stainless Steel, Passivated
Connector Series 2	Type N
Connector Gender 2	Male
Connector Angle 2	Straight
Connector Mount Method 2	None
Body Materials and Plating 2	Stainless Steel, Passivated
Cable Type	FlexPro
Electric Specifications
Impedance	50 ohm
Frequency Range(From DC)	18GHz
VSWR	≤1.25:1 (DC 0~18GHz)
Insertion Loss	Depends on cable length
Mechanical Phase	<±5°@18GHz
Amplitude Stability	<±0.05dB@18GHz
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +85°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center Conductor	Silver plated copper
Dielectric	Low Density PTFE
Jacket	Polyurethane
Jacket Diameter(mm)	5.20±0.15
Min. Bending Radius(mm)	26
Shielding Effect(dB)	>100 (0~1GHz)
Weight(kg/km)	65 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.5	0.27
1	0.38
2	0.56
3	0.70
5	0.93
6	1.03
10	1.39
18	1.98
20	2.11
26.5	2.52
