1.85mm Female to Female Mircrowave Test Cable, Low Loss Phase-Stable, 67GHZ

1.85mm Female to Female Mircrowave Test Cable, Low Loss Phase-Stable, 67GHZ

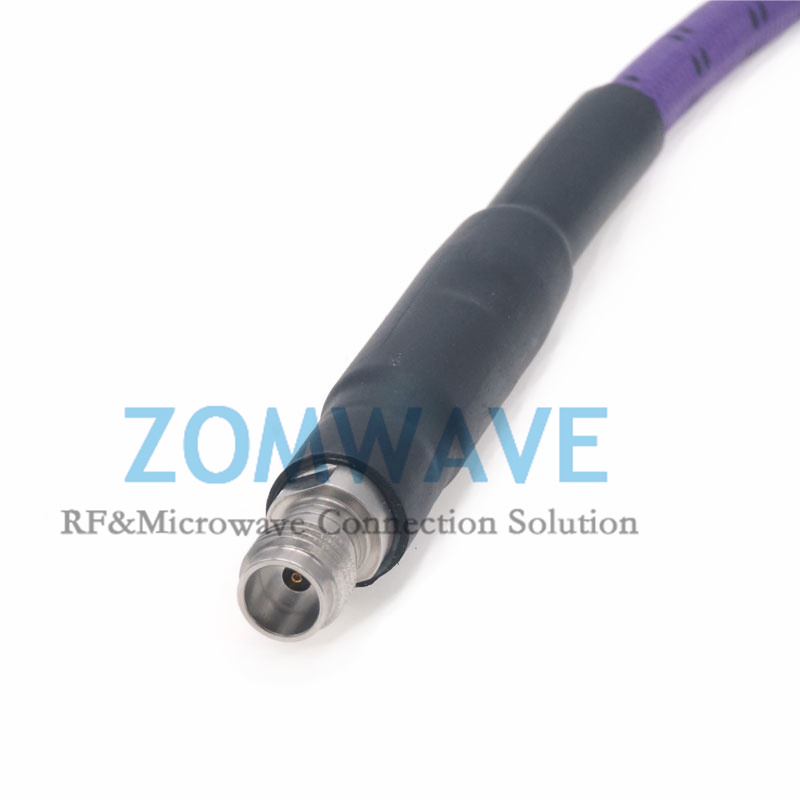

ZOMWAVE PHASE STABLE Microwave Test Cables are designed for test applications that request accurate, repeatable measurements. ZOMWAVE PHASE STABLE Microwave Test Cables provide excellent mechanical durability and electrical performance for frequency up to 110GHz. These Microwave Test Cables feature a rugged construction that deliver a 10 Million flex cycle life, with high phase and amplitude stability. ZOMWAVE 1.85mm Female to 1.85mm Female Phase Stable Microwave Test Cables are using a Stainless Steel with passivated connectors that are durable for the test applicaton. ZOMWAVE 1.85mm Female to 1.85mm Female Phase Stable Microwave Test Cables are available in 24, 36, 48 and 60 inch. No only the lengths but also the phase or time delay matching can be customized per customer's requirement.

Standard Lengths :

24in 36in 48in 60in

P/N:VA67-VCJVCJ-24.00IN Quantity Unit Price 01~09 US$234.93 10~49 US$223.75 50~99 US$213.58 100~199 US$195.78 200+ Call Us

P/N:VA67-VCJVCJ-36.00IN Quantity Unit Price 01~09 US$285.73 10~49 US$272.13 50~99 US$259.76 100~199 US$238.11 200+ Call Us

P/N:VA67-VCJVCJ-48.00IN Quantity Unit Price 01~09 US$336.53 10~49 US$320.51 50~99 US$305.94 100~199 US$280.44 200+ Call Us

P/N:VA67-VCJVCJ-60.00IN Quantity Unit Price 01~09 US$387.33 10~49 US$368.89 50~99 US$352.12 100~199 US$322.78 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

1.85mm male to male, phase stable microwave test cable, rf test cable

1.85mm cable assembly, phase stable microwave test cable, rf test cable

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

1.85mm rf cable assembly, phase stable cable assembly, rf test cable

Configuration
Connector Series 1	1.85mm
Connector Gender 1	Female
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Stainless Steel, Passivated
Connector Series 2	1.85mm
Connector Gender 2	Female
Connector Angle 2	Straight
Connector Mount Method 2	None
Body Materials and Plating 2	Stainless Steel, Passivated
Cable Type	PhaseAmo
Electric Specifications
Impedance	50 ohm
Frequency Range(From DC)	67GHz
VSWR	≤1.4:1 (DC 0~67GHz)
Insertion Loss	1.84dB/ft @67GHz
Mechanical Phase	<±9°@67GHz
Amplitude Stability	<±0.10dB@67GHz
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 5000 cycles
Mating Torque	30 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-55°C ~ +105°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center Conductor	Silver plated copper
Dielectric	Low Density PTFE
Armor Jacket	Stainless Steel with PTFE Wire
Armor Diameter(mm)	6.00±0.15
Min. Bending Radius(mm)	30
Shielding Effect(dB)	>100
Weight(kg/km)	110 (Reference)
Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.5	0.44
1	0.63
2	0.9
3	1.11
5	1.45
6	1.6
10	2.1
18	2.88
20	3.05
26.5	3.56
40	4.48
50	5.09
67	6.02
