SMA Terminator

SMA Female Terminator, 20W, 6GHz

ZOMWAVE SMA Female Terminator, 20W is rated for a maximum frequency of 6 GHz. Our SMA Male Terminator is a rf load termination with a 50 Ohm impedance. This SMA Female Terminator, 20W, 6GHZ is manufactured with Ternary Alloy Plated Brass body. ZOMWAVE 50 Ohm SMA coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1. ZOMWAVE can ship SMA terminator with high performance and low price within 5 days.

12in

P/N:TER-MAJ-020W06G-99 Quantity Unit Price 01~09 US$55.75 10~49 US$53.61 50~99 US$51.62 100~199 US$48.06 200+ Call Us
ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

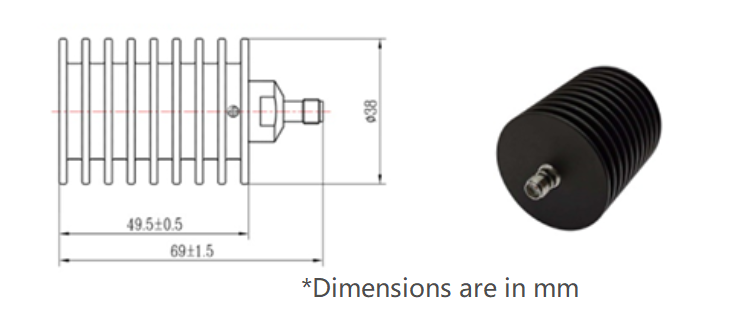

Pictures
Specifications

sma load, sma terminator, sma dummy load

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration
Adapter Series 1 SMA
Adapter Gender 1 Female
Adapter Angle 1 Straight
Adapter Mount Method1 None
Body Materials and Plating 1 Ternary Alloy Plated Brass
Electric Specifications
Impedance 50ohm
Frequency Range(From DC) 6GHz
VSWR ≤1.25:1 (DC 0~6GHz)
Insertion Loss ≤0.05xSqt(f_GHz)
Voltage Rating 335 V(rms)
Dielectric Withstanding Voltage 500 V
Maximum Power 20W
Insulation Resistance ≥500 Mohm
Mechanical Characteristics
Mating Cycles ≥ 500 cycles
Mating Torque 5~7 in - lbs
Environmental Characteristics (RoHS Complliant)
Operation Temperature Rating -55°C ~ +100°C
Corrosion (Salt Spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, 20 Gs
Shock MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
